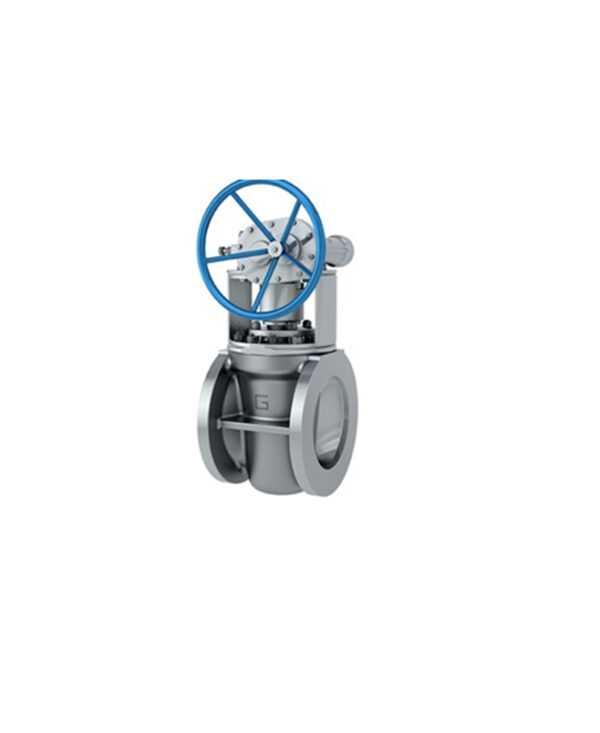

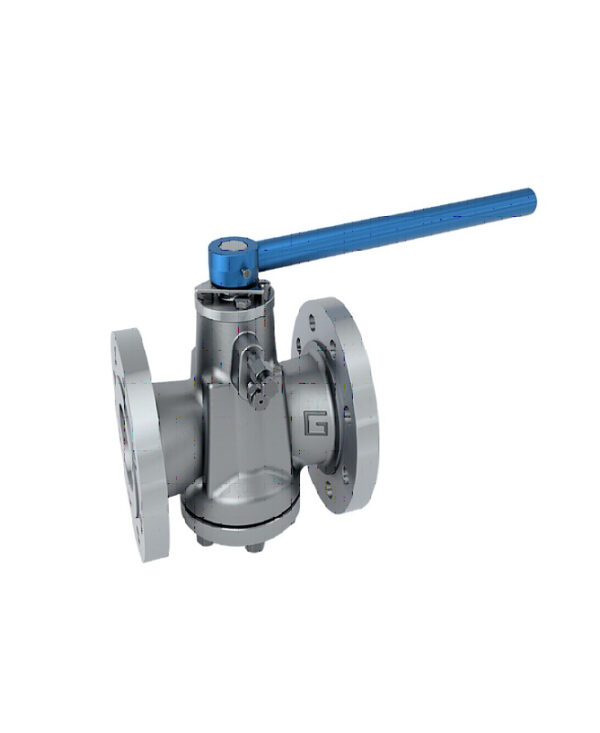

API 6D PLUG VALVE
Self-lubricated plug valves, with their features of durability, efficiency, and reduced maintenance, are revolutionizing the way industries manage fluid flow. They are not merely a perk of technological advancement but an absolute necessity in the contemporary world of industrial plumbing. As we continue to seek sustainability and efficiency in all sectors, the indispensability of these valves becomes glaringly evident. Embrace the change, optimize your flow control, and take your operations to a new level of performance!
Types of Self-Lubricated Plug Valves
Depending on the specific application, self-lubricated plug valves can be categorized into two types: Regular port and full port. Regular port valves offer reasonable flow control and are typically less expensive, but they create more flow restrictions. Conversely, full port valves maximize flow but are costlier due to their heavier, more complex construction.
Product Description
SPECIFICATIONS :
| Valve Size | 25 nb to 250 nb (1″ to 10″) |
| Pressure Class | ANSI 150 / 300 / 600 / 900 / 1500 |
| End Connection | RF / RTJ / BW |
| Flow Characteristics | Equal Percentage / Linear / Quick Opening |
| Operator | Pneumatic Actuator / Electric Actuator |
| Material | C.I. (IS 210 Gr. FG 220) / CS ASTM A 216 Gr. WCB/SS 304/SS 316 |
| Operating Temperature | Standard / High |
| Leakage Class | API 598 |
| Design Standard | ASME B16.34 |
| Face to Face Standard | ASME B16.10 |
| Fire Safe | API 6FA |
Features :
- For frequent operation, quick and lightweight opening and closing;
- Low fluid resistance, simple structure, relatively small volume, light weight, and easy maintenance;
- The flow direction of the medium can be arbitrary without being limited by the installation direction.
